300 kg Waste Transfer Robot | Indoor & Outdoor Autonomous Operation

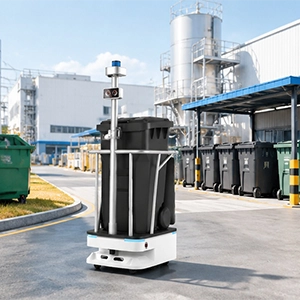

The 300 kg Waste Transfer Robot is an autonomous waste transfer robot designed for facilities that need to move waste bins and heavy loads across indoor and outdoor routes without dedicated manual transport staff. It carries up to 300 kg, navigates using a 16-line LiDAR with a 150 m detection range, and operates up to 8 hours under full load on a single charge. The robot supports elevator integration for cross-floor transport, remote call dispatch and automatic return charging.
Product Overview
The 300 kg Waste Transfer Robot is built for repeated bin and load transport in multi-floor, indoor-outdoor environments. It uses a 16-line LiDAR sensor for environment mapping and navigation, supported by a single-line LiDAR and three 3D cameras for close-range obstacle avoidance.
The robot transports waste bins and heavy loads along mapped routes, avoids obstacles dynamically, calls elevators when equipped with the optional elevator control module, returns to charge when battery is low, and responds to remote call requests from dedicated buttons or mobile devices.
The body is constructed with heavy-duty sheet metal and features a stainless steel rear guardrail, a metal load protection frame and a heavy-duty metal tail plate with snap-on guard design. The robot weighs approximately 75 kg with body dimensions of 804 × 590 × 1,690 mm. Actual passage through doorways, corridors and turning spaces should be confirmed against the specific door widths, corridor clearances and route layout at the deployment site.
The robot supports both automatic return charging and direct charging. In automatic mode, it returns to the charging station when battery level drops below the threshold. No manual battery swap is required during normal operation.
Key Features and Benefits

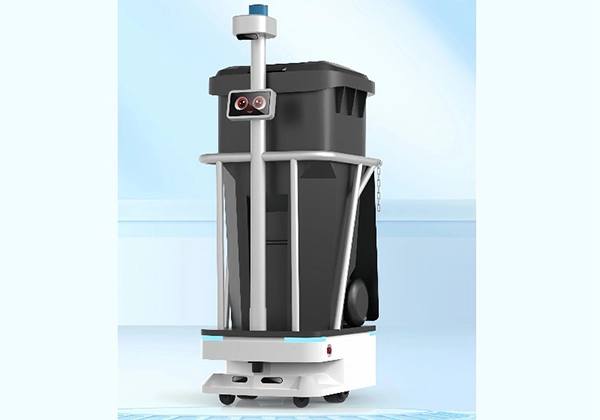

300 kg Payload with Heavy-Duty Construction
Weighing approx. 75 kg, the robot supports up to 300 kg payload. Heavy‑duty sheet‑metal body, stainless‑steel rear guardrail and load‑protection frame ensure durability for frequent daily transport. The snap‑on‑guard metal tail plate supports cargo‑handling conversion. Payload performance requires on‑site validation based on bin size, load distribution, platform clearance and routes.

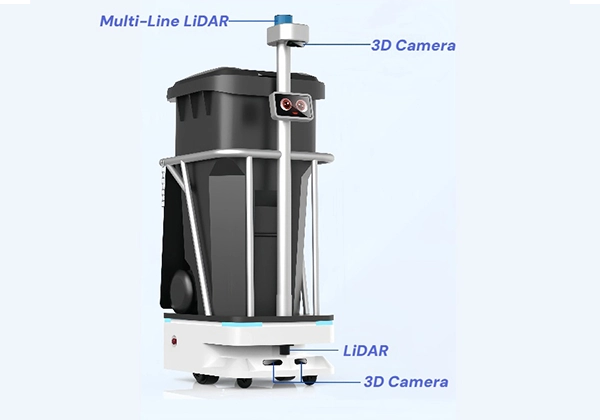

16-Line LiDAR for Indoor and Outdoor Navigation
Top‑mounted 16‑line LiDAR (150 m range) enables indoor‑outdoor mapping & navigation with ±1 cm accuracy, supporting cross‑building, parking‑lot and loading‑zone routes. Positioning is affected by map quality, load and speed. Extra mapping may be needed for dynamic, reflective or feature‑poor outdoor environments.
Three 3D Cameras for Close-Range Obstacle Avoidance
Three 0‑1.5 m‑range 3D cameras work with LiDAR for near‑field sensing and active obstacle avoidance. The robot reroutes upon detecting people or barriers. Performance is influenced by lighting, surface reflectivity and moving‑object speed. Poor light or strong reflection will impair camera effect.

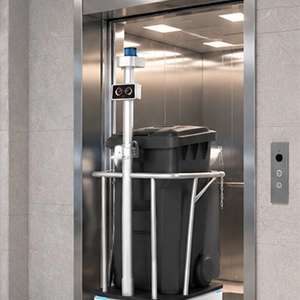

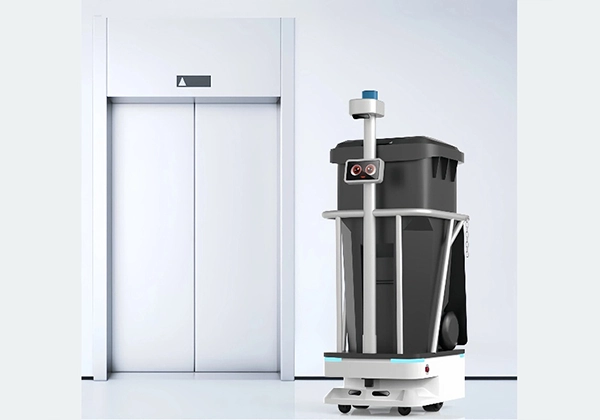

Optional Elevator Integration for Cross-Floor Transport
Optional elevator‑control module realizes autonomous cross‑floor travel via elevator calling. Compatibility depends on elevator hardware, communication and site conditions. Elevator interfaces must be confirmed and verified in project planning before deployment.
Remote Call and Dispatch System
Weighing approx. 75 kg, the robot supports up to 300 kg payload. Heavy‑duty sheet‑metal body, stainless‑steel rear guardrail and load‑protection frame ensure durability for frequent daily transport. The snap‑on‑guard metal tail plate supports cargo‑handling conversion. Payload performance requires on‑site validation based on bin size, load distribution, platform clearance and routes.
Battery and Charging

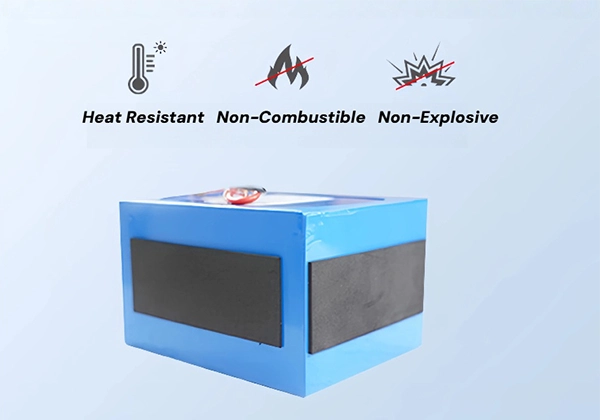

The robot uses a 38.4V / 25Ah LiFePO4 battery with 2,000+ discharge cycles and high thermal stability. It supports automatic return charging and direct charging, with charging protection functions including overcurrent protection and intelligent power-off. Runtime depends on payload, travel distance, stop frequency, and operating conditions.

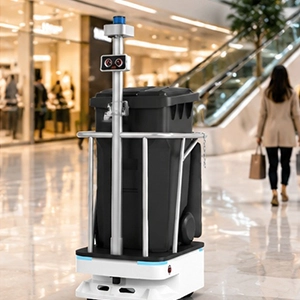

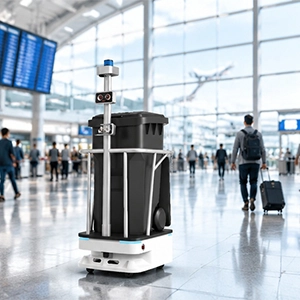

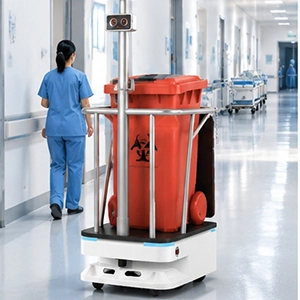

Typical Applications
The 300 kg Waste Transfer Robot is configured for the following transport tasks:
Technical Specifications
FAQS
Q: Can the 300 kg Waste Transfer Robot operate both indoors and outdoors?
The robot uses a 16-line LiDAR with a 150 m detection range for environment mapping and navigation. This supports transport routes that cross between indoor and outdoor paths. Environmental specifications for outdoor deployment — including rain, humidity, temperature exposure and surface conditions — should be confirmed before deployment.
Q: Can the robot call elevators by itself?
The 300 kg Waste Transfer Robot can be equipped with an optional elevator control module to support cross-floor operation. The module interfaces with the elevator system to enable autonomous elevator calling. This is a project-specific integration subject to elevator model, control interface and site setup. Compatibility must be confirmed before deployment.
Q: How does the robot charge?
The robot supports two charging methods: automatic return charging and direct charging. In automatic mode, the robot returns to the charging station when battery level drops below the threshold. Charging time is approximately 6 hours. The charging station includes overcurrent protection and intelligent power-off.
Q: What is the battery runtime?
Runtime is up to 8 hours under full load (300 kg) and up to 25 hours without load. The robot uses a 38.4V / 25Ah LiFePO4 battery rated for 2,000+ discharge cycles. Actual runtime depends on load weight, travel distance, frequency of stops and environmental conditions.

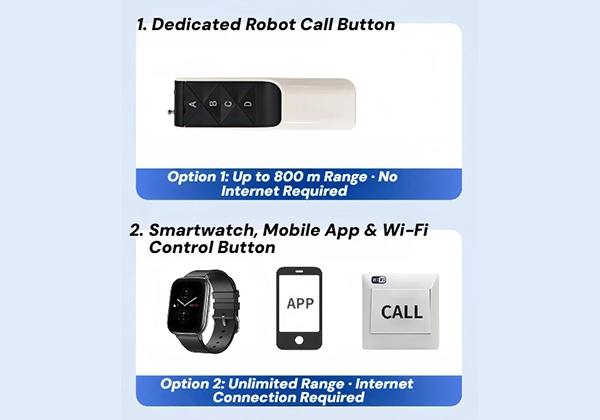

Q: How does the remote call system work?
The robot supports two remote call methods. Dedicated call buttons (A / B / C / D) operate within 800 m without network connection. Smart watch, mobile app and Wi-Fi control operate beyond the 800 m local wireless range when network connection, server access and account permissions are available.
Can the robot operate in rain or wet outdoor conditions?
The 16-line LiDAR supports indoor and outdoor navigation. Environmental specifications for rain, humidity and temperature exposure should be confirmed before outdoor deployment — see Application Limitations for details. Please contact us for site-specific environmental requirements.
Q: What warranty and after-sales support is included?
The 300 kg Waste Transfer Robot comes with a 12-month warranty. Lead time is 35 days from order confirmation. MOQ is 1 unit. For after-sales support, contact us with your application details and project requirements.
